Personligt skydd Svets

1. Spark protection that reduces the risk of the filters igniting.
2. Pre-filter gives the particle filter longer life.
3. Particle filter in easily replaceable cassette. Despite its small dimensions, the filter has a very high degree of filtration.
4 a. ABE gas filter is available as an additional accessory in a common, easily replaceable cassette that protects against specific organic (A), inorganic (B) and acid (E) gases. The cassette is snapped directly onto the fan unit.
4 b. As an option, there is an odor filter that removes unpleasant odors when particle filters alone are used. Snaps directly onto the fan unit.
5. Specially designed, brushless motor with three times longer life than conventional fan motors.
6. Control panel that provides ongoing information about functions and operating mode. Indicates ON/Airflow-Plus/OFF, warns of low airflow and low battery voltage with sound and light signal and shows battery status.
7. Air hose connection sits parallel to the back, reducing the risk of the hose gets stuck in surrounding equipment.
8. The air hose fits all models of the welding helmet Speedglas 9000 Fresh Air.
9. The air channels in the helmet distribute the fresh air and provide an even , soft and pleasant airflow over the entire face.

Flexible, unlined goat grain glove for all-round work. Withstands contact heat up to 100°C. Reinforced index finger and reinforced seams. Resistant to weld spatter and grinding spatter. Elastic 180°. Walnut split backhand. Palm thickness 0.7-0.8 mm.

Approved/Certified according to:
CE category 3
EN 420:2003+A1:2009
EN 388 :2016 3121X
EN 12477:2001+A1:2005 Type B
EN 407:2004 412X4X
EN 1149-2:1997

Fully lined flexible glove in cowhide of the highest quality. Sewn with Kevlar thread. All-round glove for work where heat-resistant gloves are needed, e.g. welding.

Approved/Certified according to:
CE category 2
EN 420:2003+A1:2009
EN 388:2016 3143X
EN 407 :2004 413X4X

Strong welding glove made of soft nut split. Fully lined and insulates well against heat. Extra reinforced seams with Kevlar thread. Suitable for: Arc welding, workshop, construction and construction.

Approved/Certified according to:
CE category 2
EN 420:2003+A1:2009
EN 388:2016 3143X
EN 12477:2001+A1:2005 Type A
EN 407:2004 413X4X

Unlined welding and heating glove made of goat grain. Flexible with a good fit. Withstands contact heat up to 100°C. Reinforced index finger and reinforced seams. Thickness 0.7-0.8 mm. Elastic 180°.

Approved/Certified according to:
CE category 3
EN 420:2003+A1:2009
EN 388:2016 2111X
EN 12477:2001+A1:2005 Type B
EN 407:2004 412X4X
EN 1149-2:1997

Light and compact fan unit that provides continuous air flow to the welding helmet. With QRS coupling for easy handling of the air hose. The design allows any combination of particle and gas filters for protection against specific organic, inorganic and acid gases. You can change the particle filter or the gas filter as needed. No external batteries, no battery cables and no sharp edges. Particle filter indicator shows how much filter capacity you have left. The batteries can be charged either on site in the fan unit or separately.
Used together with 3M Speedglas welding helmets prepared for Adflo. Adapter included to also fit the 9000 series.

Levereras med

• Fläktenhet
• Partikelfilter
• Förfilter
• Gnistskydd
• Filterskydd
• Flexibel luftslang 90-125cm
• Heavy-Duty Batteri
• Universalladdare
• Komfortbälte
• Axelremmar
• Flödesmätare

Hjälm köps separat.

Friskluftspaket Supplied AIR för tryckluft

Levereras med

• Luftenhet
• Flexibel luftslang 90-125cm
• Flödesmätare
• Komfortbälte

The spare parts below are common to all Speedglas models.

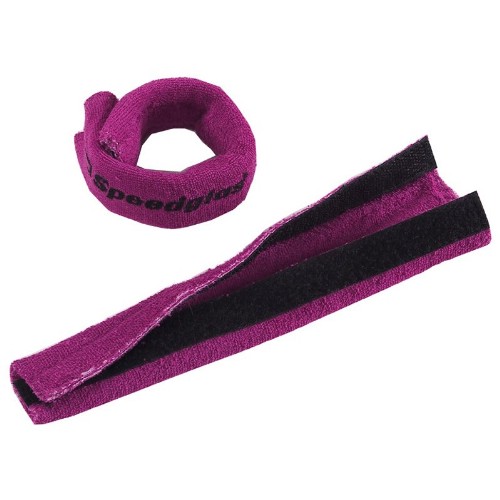

Accessories and spare parts for welding helmet 3M Speedglas 9000 FlexView.

Mid-height safety boot for welding with heat-resistant Thinsulate lining. Toe cap in aluminum and nail tread protection in plasma-treated textile (PTC). ProNose toe wear protection. Pull loops. Padded shaft. Velcro closure. Specially treated leather with heat-resistant para-aramid thread in the seams provides resistance to heat with a maximum operation of 400°C for 30 minutes. Insole FX2 Pro Slim in textile, soft E.V.A, electrically conductive polyester thread and Poron XRD with double shock absorption zones. PU midsole. Oil- and heat-resistant nitrile outsole with extremely good grip. Antistatic properties. Wide fit.

Approved/Certified according to:
EN ISO 20345:2011 (S3, SRC, CI, HRO, HI, WG)
EN ISO 20349-2:2017 (S3, SRC, CI, HRO, HI, WG)
IEC 61340-5-1 - ESD

Spacious protective boot with the highest quality level of protection. Very good grip and fit. Double shock absorption zones and antistatic properties. Aluminum toe cap, steel nail tread protection and ProNOse toe wear protection. Heat and oil resistant outsole. Water repellent. Heat resistant upper.

Approved/Certified according to:
EN ISO 20345:2011 (S3, SRC, HRO, CI, HI)

Spacious protective boot with the highest quality level of protection. Very good grip and excellent fit. Double shock absorption zones, toe cap in aluminum and nail tread protection made of plasma-treated textile. Heat resistant outsole and upper. Pronose toe wear protection, antistatic properties and oil stain outsole. Water repellent.

Approved/Certified according to:
EN ISO 20345:2011 (S3, SRC, HRO, CI)

Protective boot for demanding conditions with hard wear and high heat. Heat-resistant sole that can withstand temperatures up to 300°C and seams made of heat-resistant Kevlar. Oil and chemical resistant sole. aluminum toe cap and steel nail tread protection, the leather of the upper part is protected by toe cap. Shock absorption in sole and heel. Wide read. Inner lining that absorbs and transports away moisture. Water repellent. BOA lacing mechanism. Antistatic properties.

Approved/Certified according to:
EN ISO 20345:2011 (S3, SRC, HRO)
IEC 61340-5-1 - ESD

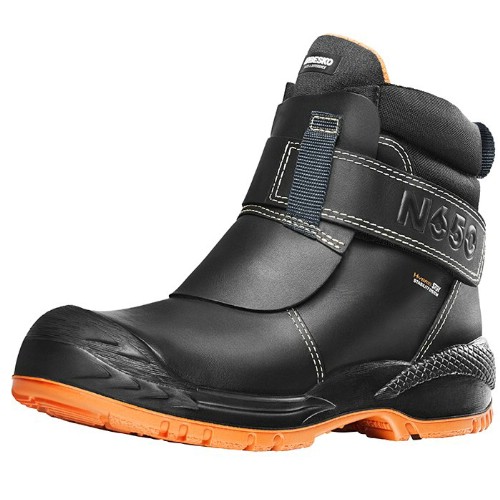

Protective boot suitable for welding work, protects against heat hazards and splashes of molten metal. Aluminum toe cap and steel toe cap. Water-repellent upper in grain leather. Insole consisting of three layers. The middle layer in the sole is made of shock-absorbing FlexStep material. Oil-, chemical- and heat-resistant outer sole made of polyurethane and rubber that withstands hard wear and heat up to 300°C. The sole provides excellent grip and is very durable. Antistatic properties. Extra wide read.

Approved/Certified according to:
EN ISO 20349-2:2017 (S3 SRC WG HI HRO FO)
IEC 61340-5-1 - ESD

Heat-resistant and durable safety shoe with aluminum toe cap and soft metal-free nail tread protection. Upper part of full-grain impregnated leather. Sewn with heat resistant thread. PU abrasion protection on the toe. Airy mesh lining and durable, quick-drying Cambrelle in the heel. Binding sole with steel rail in the hollow foot for support and stability. Ortholite X-40 Duo insole and Energy Gel 2.0 in the heel. Antistatic oil and heat resistant nitrile rubber outsole. Very spacious last.

Approved/Certified according to:
EN ISO 20345:2011 (S3, SRC, HRO, HI)

Heat-resistant and durable protective shoe in soft, impregnated leather, sewn with heat-resistant Nomex thread and equipped with a heat-resistant Nomex shoelace. Lightweight aluminum toe cap and soft metal-free nail tread protection. The combination of the insole X-40 Duo and Energy Gel 2.0 in the heel provides maximum shock absorption, exceptional rebound and a sense of failure. PU abrasion protection on the toe. Heat-resistant nitrile rubber sole with very good grip. Very spacious read. Antistatic.

Approved/Certified according to:
EN ISO 20345:2011 (S3, SRC, HRO, HI)

Heat-resistant, water-repellent safety shoe with composite toe cap and steel spike protector. ProNose toe wear protection, Kevlar thread in the seams and heat resistant upper. Oil and heat resistant outsole. Bellows tongue and padded shaft edge. Double shock absorption zones. Antistatic properties.

Approved/Certified according to:
EN ISO 20345:2011 (S3, SRC, HRO, CI, HI)
IEC 61340-5-1 - ESD

Spacious protective shoe with the highest quality of protection. Very good grip and fit. Double shock absorption zones, aluminum toe cap and ProNose toe wear protection. Heat and oil resistant outsole. Heat resistant upper and antistatic properties. Water repellent.

Approved/Certified according to:
EN ISO 20345:2011 (S2, SRC, HRO, CI)

Safety shoe with aluminum toe cap and steel nail tread protection. Velcro closure. Leather upper. Oil- and chemical-resistant sole that withstands heavy wear and withstands heat up to 300°C. Outsole of two layers, made of polyurethane and elastic thermoplastic polyurethane. Heat resistant Kevlar seams. Exterior of water-repellent material. Shock absorption in the heel. 3D dry lining that keeps the feet pleasantly dry. DUAL insole and FlexStep for extra comfort. Antistatic properties. Extra wide last.

Approved/Certified according to:
EN ISO 20345:2011 (S3, SRC, HRO)
IEC 61340-5-1 - ESD

Safety shoe with aluminum toe cap and steel nail tread protection. For demanding conditions with hard wear and high heat. Oil and chemical resistant as well as heat resistant nitrile rubber sole that can withstand temperatures up to 300°C and also provides excellent grip. Exterior of water-repellent material. The leather of the upper part is protected toe cap. Lining material 3D-dry that absorbs and transports away moisture closest to the foot and further out of the shoe. FlexStep material in the sole that prevents the legs and spine from being exposed to overexertion and shocks and prevents pain in the legs and back. Insole Sievi Dual Comfort for extra comfort and cushioning. Antistatic function. Size 39-47 with wide XL leg.

Approved/Certified according to:
EN ISO 20345:2011 (S3, SRC, HRO)
IEC 61340-5 -1 - ESD

Safety shoe with aluminum toe cap and steel nail tread protection. Leather upper. Outsole in PU/rubber friction material that can withstand temperatures up to 300°C and is oil and chemical resistant. Antistatic, shock absorbing sole. The 3D-dry lining and the loose Dual soles increase the comfort of use. Sizes 39-50 have at XL-leg.

Approved/Certified according to:
EN ISO 20345:2011 (S3, SRC, HRO)
IEC 61340-5 -1 - ESD

Safety boot with the highest quality level of protection. Very good grip and shock absorption. ProNose toe wear protection and roomy fit. Kevlar wire in the seams that can withstand 427°C short-term heat exposure and 204°C heat exposure over a longer period. Heat resistant upper, heat and oil resistant outsole and anti-static properties. Padded shaft, ventilating insole, pull loops, water-repellent properties, reflex, specially designed details and double shock absorption zones. Adapted for fire fighting, mining, life saving and rescue operations.

Approved/Certified according to:
EN 15090:2012 (F1PA, SRC, CI)

A tall, triple-lined safety boot for winter use with the highest level of protection for very cold environments. Aluminum toe cap and spike protection made of plasma-treated textile. Upper in water-repellent, PU-coated leather with Kevlar stitching, withstands 204°C for extended periods and resists welding fleas. ProNose toe wear protection. FX2 Winter insole. Oil- and heat-resistant nitrile outsole with extremely good grip and double shock-absorbing zones in Poron XRD. Roomy fit. Antistatic properties.

Approved/Certified according to:
EN ISO 20345:2011 (S3, SRC, CI, HRO, HI, WG)
EN ISO 20349-2:2017
IEC 61340-5-1 - ESD

Flame-resistant welding pants made of Proban-treated cotton. Pocket solutions and functions are specially adapted for welding. Knee protection pockets on the outside increase comfort and durability. Front pockets and back pockets with lids. Leg pocket with phone compartment. Ruler pocket with pocket lid. Wash 60°C.
Materials: 100% cotton, ringspun twill, Proban treated, weight 350 g/m².

Approved/Certified according to:
OEKO-TEX 100
EN ISO 11612 (A1, A2, B1, C1, E2, F1)
EN ISO 11611 (A1, A2, class 1)

Argon welding glove of soft goatskin with top and collar (12 cm) of split leather. Unlined and sewn with Kevlar thread. Length 30-35 cm. Lanolin- and DMFu-free.

Approved/Certified according to:
EN ISO 21420:2020
EN 388:2016 2132X
EN 407:2020 41214X< BR>EN 12477:2001+A:2005: (Type B)

Unlined glove in goat grain with 15 cm cuff of reverse pigskin. Made of a thicker leather than the assembly gloves, without sacrificing flexibility. Sewn with Kevlar thread. Leather reinforced seams. Suitable for e.g. MIG/TIG welding.

Approved/Certified according to:
CE category 2
EN 420:2003+A1:2009
EN 388:2016 2111X< EN 12477:2001+A1:2005 Type B EN 407:2004 412X3X

Glove in walnut. Sewn with Kevlar thread. Fully lined. Extra lining in the upper hand protects against heat radiation. Protects against contact heat up to 250°C for at least 15 seconds. Double leather gives longer usage time. Reinforcement with extra layer of nut gap in the palm and on the index finger.

Approved/Certified according to:
CE category 2
EN 420:2003+A1:2009
EN 388:2016 3234X
EN 12477:2001+A1:2005 Type A
EN 407:2004 42334X

Flexible, unlined welding and heating glove in goat grain. Withstands contact heat up to 100°C. Reinforced index finger. Kevlar thread in the seams that can withstand 427°C short-term heat exposure and 204°C long-term heat exposure. Flameproof. Resistant to welding spatter and grinding spatter.

Approved/Certified according to:
CE category 3
EN 420:2003+A1:2009
EN 388:2016 3111X
EN 12477:2001+A1:2005 Type B
EN 407:2004 412X4X
EN 1149-2:1997

A fully lined heating glove in durable cowhide with heat-resistant Kevlar wire. Good fit with elastic seam over the wrist. 10 cm long collar. Suitable for welding.

Approved/Certified according to:
CE category 3
EN 420:2003+A1:2009
EN 388:2016 3143X
EN 12477:2001+A1:2005 Type A
EN 407:2004 41314X
EN 1149-2:1997

High-quality nut grain/nut split glove. Flexible and durable. Extra long collar, 15 cm. Reinforced seams, sewn with Kevlar thread. Walnut split backhand. All-round glove for work where heat-resistant gloves are needed, e.g. welding.

Approved/Certified according to:
CE category 2
EN 420:2003+A1:2009
EN 388:2016 2132X
EN 12477 :2001+A1:2005 Type B
EN 407:2004 41314X
EN 1149-2:1997

Premium quality TIG welding glove. Made of goat grain and goat split and sewn with Kevlar thread.

Approved/Certified according to:
EN ISO 21420:2020
EN 388:2016 2132X
EN 407: 2020 41214X
EN 12477:2001+A:2005: (Type B)

Comfortable and protective welding helmet. Automatic dimming function and a patented exhalation valve to get the exhaled air out more efficiently and quickly, which means that fogging on the welding glass is reduced. It also reduces the risk of increased heat, humidity, carbon dioxide content and foul air inside the visor. With the delay function, the user can set the desired cover time from dark to light mode. Arc detection sensitivity can be set to provide the most reliable coverage for a range of welding processes, amperages and situations. The welding glass can also be locked at the desired degree of tightness, so that it functions as a passive welding glass either in the light position for grinding or in one of the dark positions. The welding glass is powered by 2 batteries CR2032.
SW = Side window.
Welding glass 9100V - Viewing surface 45x93 mm.
Welding glass 9100X - Viewing surface 54x107 mm.
Welding glass 9100XX - Viewing surface 73x107 mm.
Welding glass 9100XXi - External control for grinding / memory modes. Improved optics that make it easier to distinguish colors. Visible surface 73x107 mm.
Conforms to EN 379.

Welding helmet prepared for respiratory protection. Integrated air channel provides airflow to the entire helmet. Quick Release Swivel makes the air hose easy to put in place with one hand. Larger field of view with side window, tightness level 5.
Supplied without welding glass. To be completed with welding glasses 9100V, 9100X, 9100XX or 9100XXi.
Complies with EN 379 and EN 175.

Complete welding helmet with automatically dimming welding glasses. Welding helmet with high comfort and low weight, headband with self-adjusting forehead relief, adjustable air channel system and face seal with easy and safe adjustment. Designed for heavy duty high current welding such as MMAW, MIG/MAG, TIG welding as well as plasma cutting and grinding. Flip-up function that makes it easy to switch between welding and grinding. Welding glass with adjustable dark density grades 5 (cutting) and 8-14. Bright mode with density level 3. Turnover time from light to dark in 0.1 ms. Viewing surface when welding 73x109 mm, viewing surface for grinding visor 170x104 mm. Natural Color technology, colors become clearer and more realistic in both light and dark mode. Also provides a more realistic field of view for better control over the welding arc. Variable Color technology, choose between shades of natural (A), cool (B) or warm (C) for dark mode. Choose yourself which color tones give the best contrast when welding and feel most comfortable to the eyes. Easy-to-use control panel, where you manage the functions easily. Powered by 1 pc 3 V Lithium battery (CR2450). The welding glass is also equipped with a Bluetooth function, easily paired with a smartphone. With the 3M Connected Equipment app, there is access to additional functions; Program up to ten memory settings (dark density, sensitivity, delay, etc.). Easy to keep a log in the app of the maintenance of your welding helmet. Statistical information immediately: when your welding glass was first activated, how long it has been in operation, hours in dark mode, hours in light mode and number of operating cycles (on/off). Access the user manual and accessory lists. Supplied complete with welding helmet G5-01, welding glass G5-01VC.
Complies with EN 175:B, EN 379, EN 166:B. Classification 1/1/1/2.

Complete package with welding helmet G5-01, auto-dimming welding glasses G5-01VC and Adflo fan-assisted respirator.
Welding helmet with high comfort and low weight, headband with self-adjusting forehead relief, adjustable air channel system and face seal with easy and safe adjustment. Designed for heavy duty high current welding such as MMAW, MIG/MAG, TIG welding as well as plasma cutting and grinding. Flip-up function that makes it easy to switch between welding and grinding while maintaining fan-assisted breathing protection.
Welding glasses with adjustable dark tightness degrees 5 (cutting) and 8-14. Bright mode with density level 3. Turnover time from light to dark in 0.1 ms. Viewing surface when welding 73x109 mm, viewing surface for grinding visor 170x104 mm. Natural Color technology, colors become clearer and more realistic in both light and dark mode. Also provides a more realistic field of view for better control over the welding arc. Variable Color technology, choose between shades of natural (A), cool (B) or warm (C) for dark mode. Choose yourself which color tones give the best contrast when welding and feel most comfortable to the eyes. Easy-to-use control panel, where you manage the functions easily. Powered by 1 pc 3 V Lithium battery (CR2450). The welding glass is also equipped with a Bluetooth function, easily paired with a smartphone. With the 3M Connected Equipment app, there is access to additional functions; Program up to ten memory settings (dark density, sensitivity, delay, etc.). Easy to keep a log in the app of the maintenance of your welding helmet. Statistical information immediately: when your welding glass was first activated, how long it has been in operation, hours in dark mode, hours in light mode and number of operating cycles (on/off). Access the user manual and accessory lists.
Comes complete with welding helmet G5-01, welding glasses G5-01VC, Adflo high altitude fan unit with QRS self-adjusting air hose, adapter, air flow meter, filter, belt, heavy duty battery, charger and storage bag.< BR> Conforms to EN 175:B, EN 379, EN 166:B, EN 12941 (TH3) / NPF 500. Classification 1/1/1/2.

Welding helmet with arched automatic dimming welding glasses. The helmet is specially designed for advanced TIG welding and sets a new standard for sharpness on welding glasses. Also suitable for MMA, MIG/MAG welding and plasma cutting.
With Curved Glass technology, the welding glass follows the curvature of the head and is more in line with your peripheral vision. The curved glass enables a helmet with a narrower profile and wider field of vision. Visible surface of 150x76 mm. The combination of the curved welding glass and a narrower helmet reduces reflections and other distracting glare inside the helmet.
The design of the helmet means that the center of gravity is close to the center of the head, which provides better weight distribution. Innovative design for the ventilation of exhaled air to reduce heat and moisture, providing high comfort.
Welding glass with advanced electronics with four arc sensors, the welding glass switches reliably even at very low TIG settings (1 amp), which meets TIG+ standard according to ISO 16321. Variable density 8-12 and light density 2.5. Turnover time from light to dark in 0.1 ms. Natural Color technology, colors become clearer and more realistic in both light and dark mode. Also provides a more realistic field of view for better control over the welding arc. Easy-to-use control panel, where you manage the functions easily; Bluetooth ON, Density Lock, Delay, Density 8-12 (+/-) and Sensitivity (+/-). The most used controls (density and sensitivity) are located where they are easiest to access, in the lower left and right corners. Powered by 1 pc 3 V Lithium batteries (CR2450).
The welding glass is also equipped with Bluetooth function, easily pairs with smartphone. With the 3M Connected Equipment app there is access to additional functions;
Program up to ten memory settings (dark density, sensitivity, delay, etc.).
Easy to keep a log in the app of the maintenance of your welding helmet.
Statistical information directly: when your welding glass was first activated, how long it has been in operation, hours in dark mode, hours in light mode and number of operating cycles (on/off).
Access the user manual and accessory lists.
Weight : 535 g.
Complies with EN 379:2003+AI:2009, EN 166:F, EN 175:F, TIG+ standard according to ISO 16321.

Evolution (Vision) är namnet på den nya PPE-produktfamiljen för avancerade svetshjälmar och motordrivna luft-andningssystem. Evolution Vision65F & Evolution Vision65FM är de första produkterna i denna nya familj. Dessa är automatiskt avbländande svetshjälmar med en uppfällbar UHD ADF som kombinerar en svetshjälm med en slipskärm med bred sikt. Utrustad med en ny multi-justerbar huvudbonad med fyra huvudband och en nackrem som ger den stor komfort och ergonomisk viktfördelning.

• Siktyta (slipskydd): 180x90mm
• Siktyta (display): 96x65mm
• Färg: True color technology
• CE optisk klassificering: 1/1/1/1
• Standarder och certifieringar: CE; UKCA; ANSI / ISEA Z87.1-2020; CSA Z94.3:20; AS/NZS 1338.1:2021
